VLX 80 Casement Window

VLX 80 Casement Window in Hialeah, FL | TruePane Windows & Doors

The VLX 80 Casement Window is a side-hinged aluminum window built for homeowners in Hialeah who want maximum airflow and the cleanest possible view. What sets it apart is the ultra-narrow sightline, which means more glass, less frame, and a sightline that lets Florida light pour in without obstruction. TruePane Windows & Doors is an authorized ViewLux partner installing this exact window across Hialeah, from Palm Springs North to Seminola. If you’re researching this product, call us at (386) 977-5410 for a free on-site measurement and detailed quote. We’ll walk you through every glass, finish, and screen option before you commit to anything.

Call (386) 977-5410

Product Overview - VLX 80 Casement Window

The VLX 80 is a casement window engineered around a simple idea: aluminum strength without the bulky look that older aluminum windows in Hialeah are known for. The Profile width on this model is just 1.97 inches, which is exceptionally slim for a window frame carrying double-strength glass. That thin frame creates the “ultra-narrow sightline” you’ll hear us mention, and that’s the reason this window photographs so well in mid-century homes and modern renovations alike.

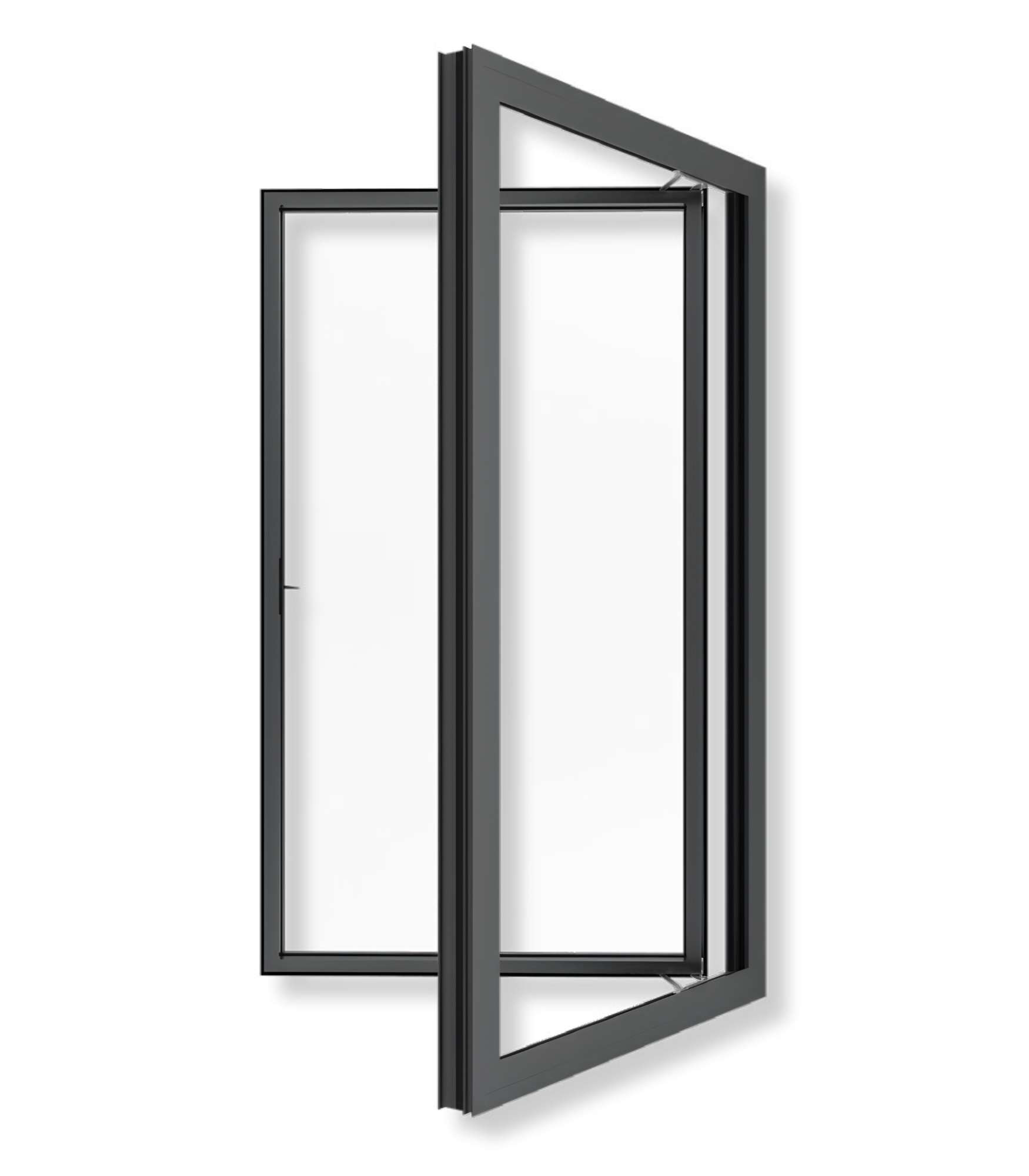

Because it hinges on the side and swings fully outward, a casement design naturally captures more breeze than a single-hung or slider. You get the whole opening working for you, not just half of it. In Hialeah’s climate, that cross-ventilation is not a luxury; it’s how you keep the AC bill from climbing every May through October. The VLX 80 hardware is designed for daily use, with smooth crank or lever operation and multi-point locking that pulls the sash tight against the weatherstripping when closed.

We recommend this window to homeowners in Hialeah who are tired of fogged glass and stiff, painted-shut frames on older homes, and to builders who need a spec product that looks high-end but holds up to the humidity and UV exposure this city dishes out. The frame wall thickness of 0.079 inches gives the extrusion enough structural rigidity to resist bowing, even on wide openings near canal-front properties where wind exposure runs higher.

Technical Specifications

Here is the VLX 80 Casement Window broken down in plain numbers, so you can compare it fairly against other aluminum series.

• Frame wall thickness: 0.079 inch aluminum extrusion
• Profile width: 1.97 inches (ultra-narrow sightline)
• Operation: Side-hinged casement, full outward swing
• Glass options: Clear, Frosted, Low-E, Tempered, Laminated (impact-rated available)
• Frame finishes: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood
• Screen options: Fixed Screen, Retractable Screen
• Sill options: Standard Sill, Low-Profile Sill
• Performance standards: NFRC-rated thermal break, AAMA 2400/2410 installation compliance, AAMA 812 perimeter foam seal

Every window we quote includes the sill and screen configuration you actually want, not a default the factory picks. If you’re doing a multi-unit retrofit in a Hialeah condo building, we’ll spec the low-profile sill so you don’t change interior trim lines. If you’re replacing one window in a 1960s ranch, the standard sill often matches the existing stucco reveal better. Call (386) 977-5410 and we’ll help you choose correctly the first time.

Performance Features

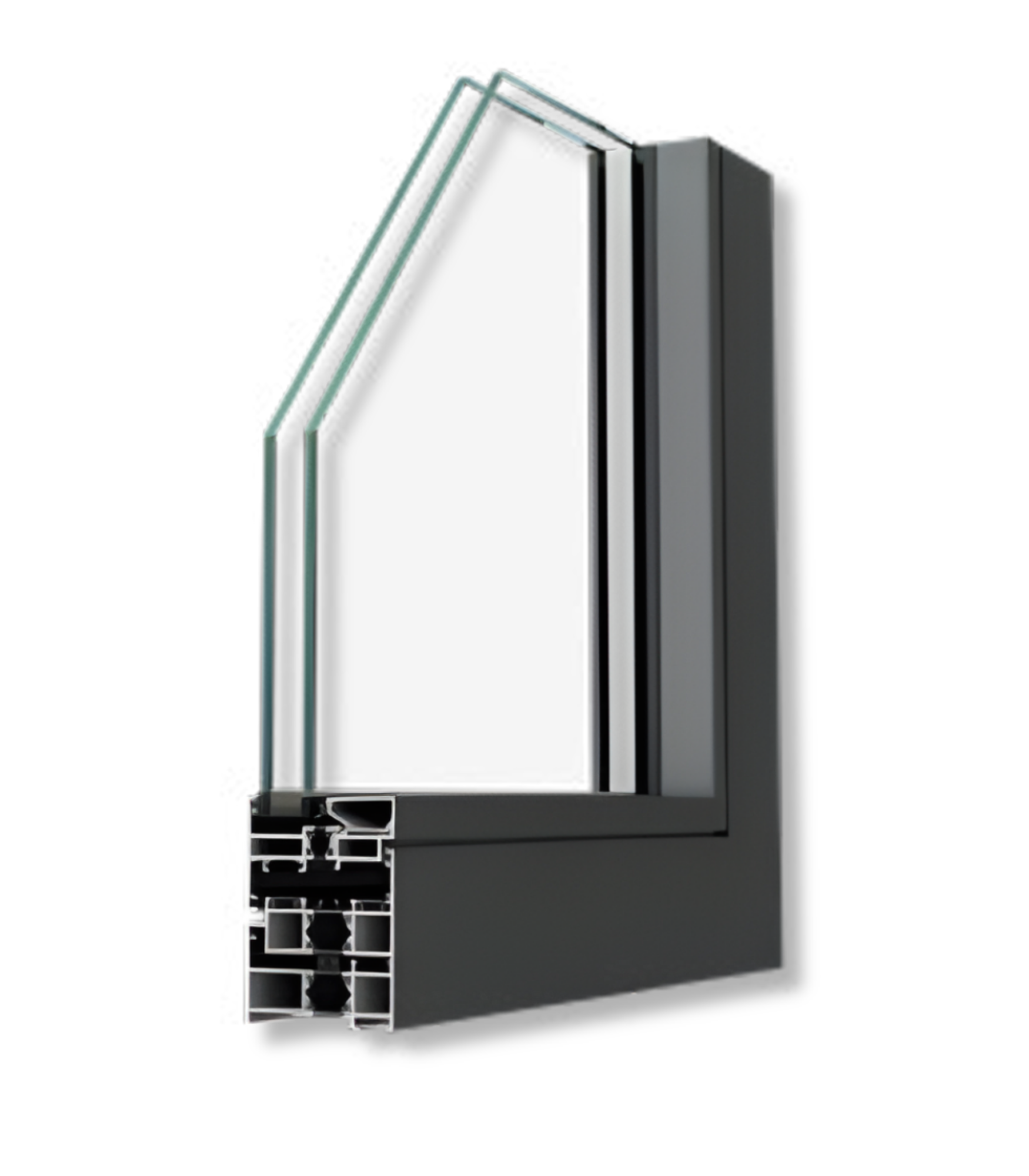

Thermal Efficiency - The VLX 80 carries a true thermal break, which interrupts the metal-to-metal path that normally conducts heat through an aluminum frame. When paired with Low-E glass, the window earns NFRC-rated energy performance figures that matter in Hialeah, where the AC runs ten months a year and the afternoon sun on a west-facing wall can push surface temperatures past 140 degrees.

Acoustic Performance - Traffic noise on Okeechobee Road, the Palmetto Expressway, and the constant hum from nearby Miami International flight paths are real quality-of-life issues in Hialeah. Laminated glass on the VLX 80 adds a sound-dampening interlayer that noticeably cuts mid-range noise. Bedrooms facing the street are the first place we recommend this upgrade.

Airtightness & Weather Seal - The casement design compresses the sash against perimeter weatherstripping as it closes, which creates a better air seal than any sliding window can offer. That means less humid outside air infiltrating your home, fewer drafts around window edges, and less load on your dehumidifier or AC system.

Waterproofing - Hialeah’s afternoon thunderstorms arrive fast and dump water sideways. The VLX 80’s drainage channels are engineered into the frame to shed water outward and away from the interior sill. On installation, we use AAMA 812 compliant low-expansion foam on every perimeter joint, sealing the gap between the new frame and the rough opening so water can’t find a path behind the wall.

Wind Resistance - South Florida building code requires windows to handle serious wind loads, especially on the second and third floors. The VLX 80’s 0.079-inch wall thickness and multi-point locking hardware combine for strong wind-load performance. Impact-rated laminated glass is available for homeowners in Hialeah who want the strongest protection short of storm shutters.

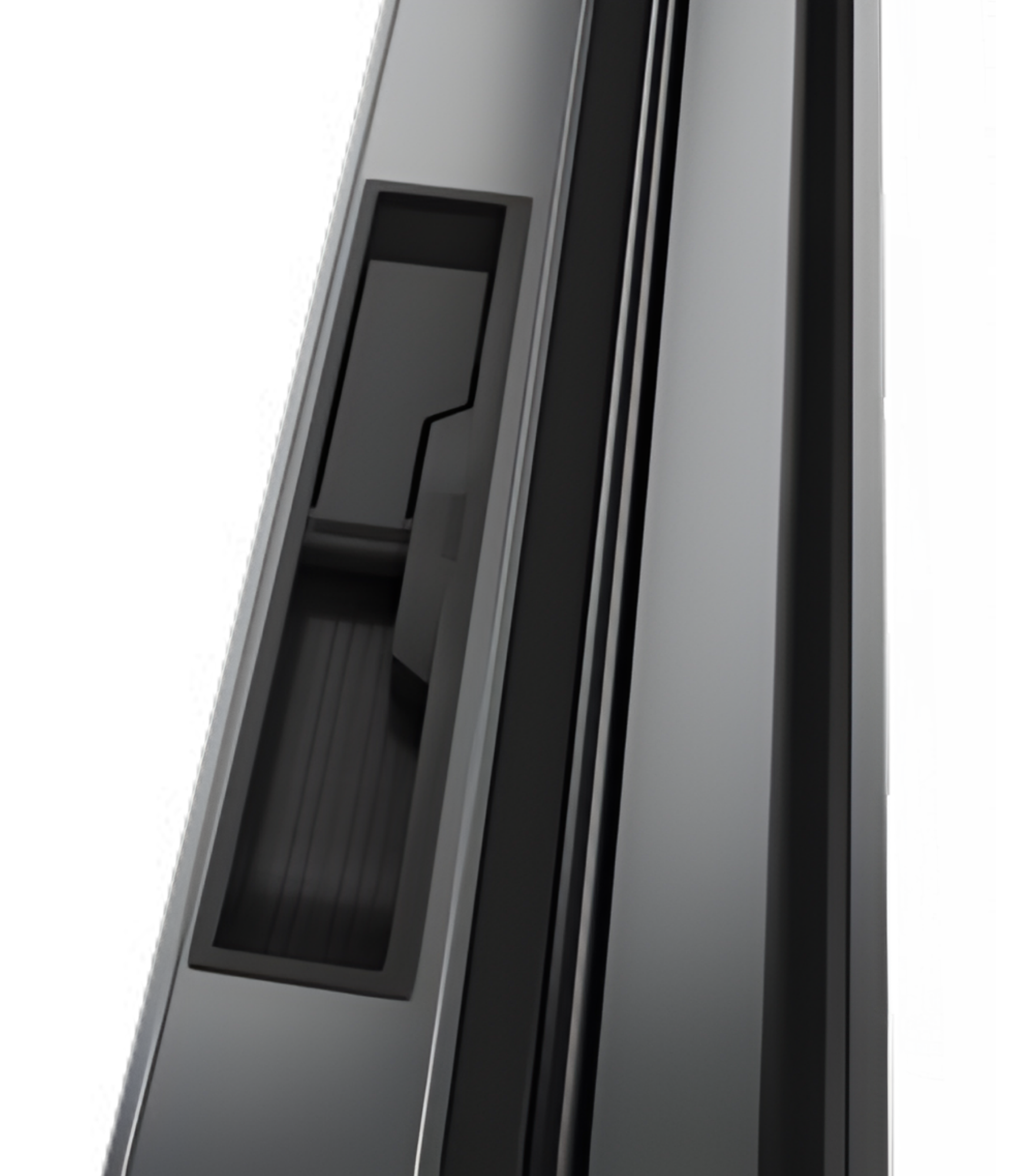

Security & Hardware - Aluminum casement windows with multi-point locks are among the hardest windows to pry open. The VLX 80’s locking rods seat at multiple points around the frame, not just one latch in the middle, so forcing the sash is extremely difficult. The crank mechanism doubles as a security feature because the window cannot be opened from outside without breaking the glass.

Color & Glass Options

The VLX 80 comes in six finishes, and each reads differently on a Hialeah home. Pure White is the classic for older Florida ranch houses with stucco or siding, and it’s the most forgiving if your exterior color palette is already set. Premium Black is increasingly popular on modern builds and renovations, where the dark frame against a light wall creates a sharp architectural contrast. Anodized Silver offers an aluminum-forward industrial look that works well on minimalist or coastal-inspired designs. Bronze and Champagne both bring warmth without the upkeep of wood, with Bronze suiting traditional facades and Champagne matching warmer stucco tones. Teak Wood is a woodgrain finish for homeowners who want the look of stained wood with zero rot, termite exposure, or repainting.

On the glass side, Clear is the economical baseline. Frosted handles bathrooms, entry sidelights, or any opening where you want light but not visibility. Low-E is the practical upgrade most Hialeah homeowners choose for energy savings and UV protection on furniture and floors. Tempered glass is safety-rated, breaking into small fragments rather than sharp shards, and is often required near doors or low sills by building code. Laminated glass is the impact-rated choice, ideal for storm protection and sound control.

Installation by TruePane Windows & Doors in Hialeah

We install the VLX 80 Casement Window the way the manufacturer expects it to be installed, because the window’s long-term performance depends on the opening being right. Most window failures in Hialeah are not glass failures; they’re installation failures. Water finds the seam between the frame and the wall, or the window was set out of square and the sash binds and leaks.

Our process starts with a pre-installation inspection of the rough opening. We check the existing framing for rot or termite damage, inspect the lintel or header above the opening, and verify the opening dimensions against the factory order. Then we set the new VLX 80 frame level, plumb, and square with shims. Level means the sill drains water in the direction the weep holes are designed for. Plumb means the side jambs are vertical so the sash hangs and seals evenly. Square means the diagonal measurements match, so the crank hardware operates smoothly on day one and five years later.

We seal every perimeter joint with AAMA 812 compliant low-expansion foam, then apply an exterior sealant detail that sheds water to the outside. The entire installation is performed to AAMA 2400/2410 standards, which is the national benchmark for residential window installation. We finish with a water test on the exterior perimeter and a full cleanup, removing old frames, glass, and packaging from the property. Improper installation by an unqualified contractor can void the manufacturer’s warranty, which is exactly why TruePane Windows & Doors installs this product to code and to spec. If you’re replacing windows in Hialeah, call (386) 977-5410 to have us inspect your openings before you order.

Frequently Asked Questions - VLX 80 Casement Window

Get a Quote - VLX 80 Casement Window in Hialeah

If the VLX 80 Casement Window sounds like the right product for your Hialeah home, let’s put real numbers together. Call TruePane Windows & Doors at (386) 977-5410 to schedule a free on-site measurement. We’ll confirm your openings, walk through glass and finish options with actual samples in hand, and give you a detailed written quote you can plan around.

Written by the team at TruePane Windows & Doors, authorized ViewLux installation partner serving Hialeah, FL.
