AfterGeometric & Shaped Windows in Hialeah, FL | TruePane Windows & Doors
Geometric and shaped windows bring real architectural presence to a Hialeah home. We’re talking triangles set high in a gable, a half-round transom over the front door, an octagon anchoring a stairwell wall. But this is Florida, and a decorative window that can’t handle wind-zone pressure is a liability the first time a named storm tracks toward Miami-Dade. TruePane Windows & Doors fabricates and installs impact-rated geometric windows custom-made to your opening, so the architectural detail and the hurricane protection come from the same frame. We install across PGT, CGI, CWS, ES Windows, ECO, and Mr-Glass lines. Call (386) 977-5410 to start a quote.
Product Overview - Geometric & Shaped Windows
Geometric and shaped windows are exactly what the name says: triangular, hexagonal, octagonal, eyebrow, trapezoid, radius-top, and curved configurations that don’t fit the standard rectangular window opening. In Hialeah, we see them most often in Mediterranean and coastal-style homes where a half-round window crowns the entry or a triangle fills the gable peak. What makes an impact-rated version different from a picture window product is the engineering that goes into the glass package and the frame joinery. The laminated glass holds together under impact, while the frame is built to the same structural standard as every other opening in the home’s wind zone. All of those custom shapes are fabricated to order, never cut on-site from stock.
Why does that matter in Hialeah? Because a non-impact geometric window creates a weak point in the building envelope. An octagon with regular annealed glass becomes the first opening to fail under cyclic wind pressure. TruePane Windows & Doors supplies these shapes as fully rated impact assemblies, so the home’s architectural character doesn’t compromise its wind-zone protection. Installation follows AAMA 2400/2410 practice, with the frame set level, plumb, and square, and a continuous AAMA 812 foam perimeter seal.
Technical Specifications
The spec sheet for a geometric window in Hialeah looks a little different from a stock single-hung, because nearly everything starts with the opening dimension and the wind-zone calculation. Here’s what we work with across our PGT, CGI, CWS, ES Windows, ECO, and Mr-Glass lines:
- Frame materials: Aluminum or vinyl, selected based on the profile’s span, exposure, and finish goals.
- Maximum size: Custom fabricated to order. There is no off-the-shelf geometric unit. Every triangle, hexagon, and radius top is built to the opening we measure.
- Glass options: Laminated impact glass with a PVB interlayer, Low-E insulated glass, tinted glass, and clear glass.
- Finish options: White, almond, bronze, black, and tan, with the finish applied at the extrusion level rather than painted on after fabrication.
- Operation: Typically fixed (non-operable). Some configurations can be paired with a rectangular operable unit below the geometric shape.
- Wind-zone engineering: Design pressures matched to your wind zone, up to +/-100. We never overstate the rating beyond what the configuration and NOA actually approve.
Hurricane & Compliance Performance
These features are what separate a decorative geometric opening from an HVHZ-compliant impact assembly. Each one matters for Hialeah permitting and for long-term performance.
Laminated Impact Glass
Laminated impact glass with a PVB (polyvinyl butyral) interlayer holds the glass in the frame under impact. The outer lite can crack, but the interlayer keeps the pane bonded, which prevents wind and water from entering through the broken glass. For a geometric window, that interlayer also preserves the custom shape’s structural behavior long after the impact event.
Miami-Dade NOA / Florida Product Approval
Miami-Dade NOA (Notice of Acceptance) and Florida Product Approval numbers are issued per configuration, not as a blanket rating. We verify the specific approval for your exact shape, size, and glass make-up on your quote before anything gets ordered. Ask us for the approval documents and we’ll have them for your permit package.
FBC / HVHZ Compliance
Geometric windows from TruePane Windows & Doors are engineered to Florida Building Code (FBC) High-Velocity Hurricane Zone (HVHZ) requirements. Hialeah sits inside that HVHZ map, so every custom shape we supply has to clear the same bar as a rectangular impact window on the same wall.
TAS 201 / 202 / 203 Testing Context
HVHZ-rated products are tested under a protocol family that includes TAS 201 (large-missile impact), TAS 202 (cyclic wind-pressure loading), and TAS 203 (forced-entry resistance). These tests simulate what a window goes through during and after a serious storm event, and they are the reason a geometric impact unit isn’t just a decorative pane with a sticker on it.
Design Pressure Matched to Your Wind Zone
Design pressures are matched to your wind zone, up to +/-100, and never higher. Overselling the pressure rating doesn’t make the window stronger. Getting the right rating on the approval documents is what passes your Hialeah permit review and protects the home.
Energy Performance
Low-E and insulated glass options are available for energy performance. A west-facing half-round in Hialeah catches direct afternoon sun, and a Low-E package makes a real difference in how that room feels, without changing the impact rating. Tinted glass works the same way, especially on large gables where glare is a bigger issue than heat gain.
Color & Glass Options
Hialeah’s architectural mix tends toward warm Mediterranean tones, concrete stucco, barrel tile, and coastal blues. A white aluminum geometric frame reads clean against a stucco wall and matches most existing window casing. Almond and tan sit closer to the natural stone and tile palettes we see throughout Miami-Dade. Bronze and black make the strongest architectural statement, especially on modern builds or where the window sits in a darker fascia or metal roof profile. All five finishes, white, almond, bronze, black, and tan, are available on both aluminum and vinyl frames.
On the glass side, clear laminated impact is the standard starting point. The PVB interlayer does the protective work without changing sightlines. Low-E insulated glass is the upgrade when the window faces direct sun, and tinted glass handles glare-heavy exposures like a tall octagon over a two-story entry. The glass package doesn’t change the structural compliance; it changes how the space feels, and it is worth deciding before the frame goes into fabrication.
Installation by TruePane Windows & Doors in Hialeah
Installation is where a rated product either stays rated or quietly loses its rating. TruePane Windows & Doors installs every geometric window in Hialeah following AAMA 2400/2410 practice. We start with a pre-install inspection of the rough opening. If the opening isn’t square or the framing doesn’t match the plan, we correct it before the window leaves the shop in final fabrication. The unit gets set level, plumb, and square with the AAMA 812 low-expansion foam perimeter seal applied continuously so there are no gaps for water intrusion.
We finish with a water test where the installation details allow it, and we walk the site for cleanup. Hialeah sits in a High-Velocity Hurricane Zone, so coastal exposure and wind zone calibration matter at the quote stage, not just on inspection day. Permitting in Miami-Dade moves on the Florida Product Approval and NOA documentation, and we keep that paperwork attached to your job file from the first quote. Improper installation compromises what the NOA-rated system was tested to do, no matter how good the window is. A rated frame with a sloppy perimeter seal is a leak and a failure waiting on the next storm. That’s why the installation practice gets the same attention as the product selection.
Frequently Asked Questions - Geometric & Shaped Windows
Design pressures are matched to your specific wind zone, up to +/-100, and never higher. TruePane Windows & Doors verifies the exact rating for your shape, size, and glass configuration on the quote, backed by the Miami-Dade NOA and Florida Product Approval documents for that configuration. Call (386) 977-5410 and we’ll pull the documents for your Hialeah address.
Lead time runs a few weeks in a normal supply cycle because every unit is fabricated to your measured opening. Custom shapes, uncommon glass packages, and specific finish combos can add time. We recommend starting the conversation early if the window is tied to a renovation schedule. Call (386) 977-5410 and we’ll give you a current production window for the exact configuration you need in Hialeah.
Yes. Hialeah sits inside the HVHZ, and the building department expects Miami-Dade NOA or Florida Product Approval documentation for the specific configuration you’re installing. TruePane Windows & Doors includes those approval documents with your quote and keeps them organized for the permit submittal package.
Yes, and that’s the whole point of this product line. Triangular, hexagonal, octagonal, eyebrow, trapezoid, radius, and fully custom curved profiles are fabricated to your opening. There is no stock size we’re trying to fit you into. We measure, we engineer for the wind zone, and the factory builds to the shape. Call (386) 977-5410 to start the measurement process.
Maintenance is simple: wash the frame and glass with mild soap and water a couple of times a year, and keep the weep system clear of debris. In Hialeah’s salt-air environment, the finish is applied at the extrusion level, so it doesn’t flake the way a site-applied paint job would. We’ll cover the specifics for your chosen frame material and glass package when we quote the project.
Get a Quote - Geometric & Shaped Windows in Hialeah
If you’re planning a geometric window in Hialeah, the quote starts with a measurement and a wind-zone check at your address. TruePane Windows & Doors provides free on-site measurements, written line-item pricing, and the NOA or Florida Product Approval documents for your exact configuration. Call (386) 977-5410 today and let’s get your geometric window on the calendar.
Written by the team at TruePane Windows & Doors, serving Hialeah, FL and greater Miami-Dade County with hurricane-impact window and door installations.
Six Reasons Homeowners Choose TruePane Windows & Doors
Impact systems engineered to design pressures up to +/-100, matched to your wind zone - your openings hold when the storm arrives.
Low-E insulated impact glass from our manufacturer lines commonly cuts monthly cooling bills 20-30%.
Laminated impact glass shuts out up to 40% of outside noise - traffic, neighbors, weather.
Monitoring services run $30-90 a month. Laminated impact glass resists forced entry around the clock, with no subscription.
Florida homeowners average around 25% savings on the windstorm portion of their policy after protecting every opening - some homes qualify for more.
A full impact package upgrades curb appeal, buyer confidence and appraised value in one project.
Other TruePane Windows & Doors Services
What Neighbors Say About TruePane Windows & Doors

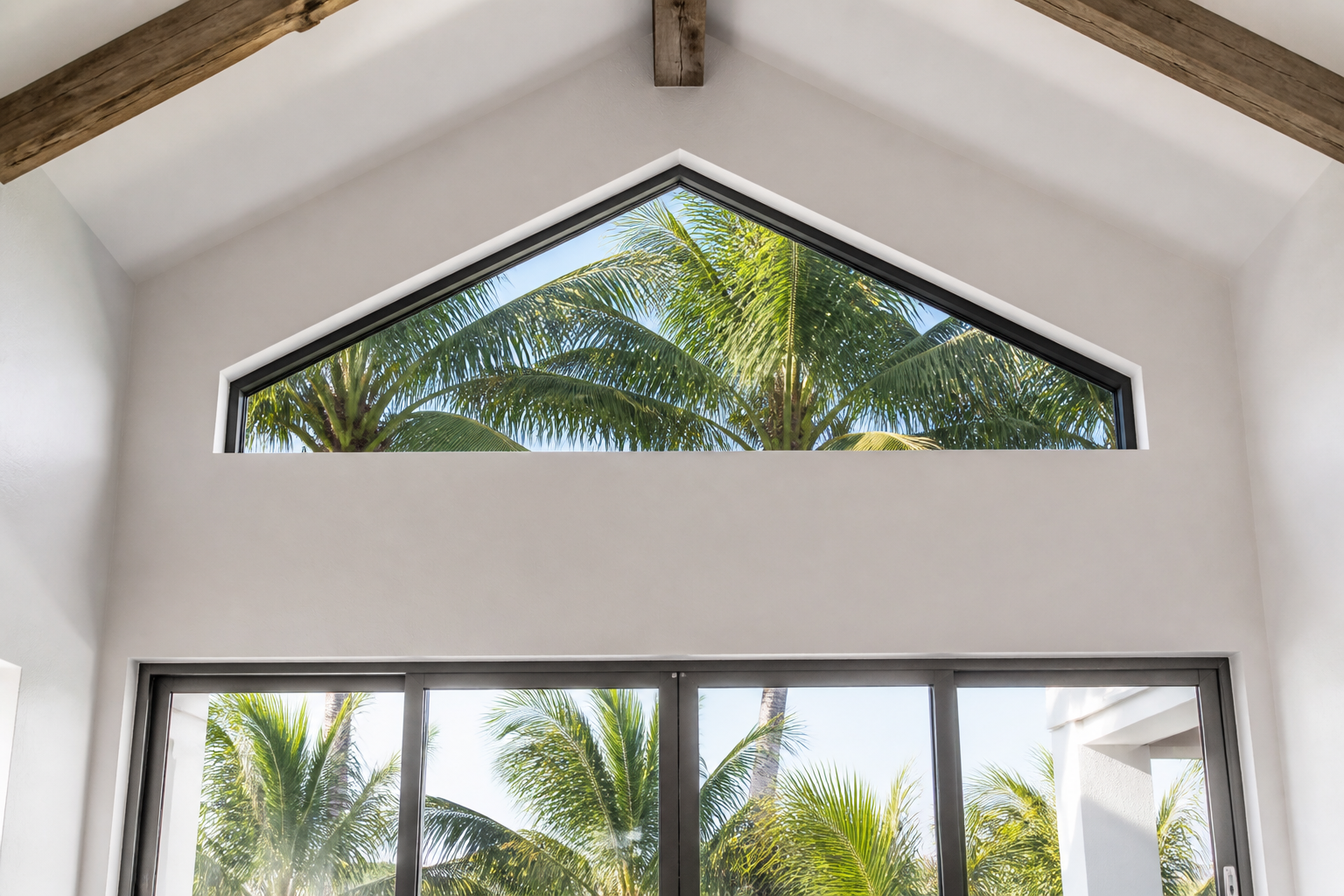

Detailed Images
