Picture & Fixed Windows

Picture & Fixed Windows in Hialeah, FL | TruePane Windows & Doors

Picture & Fixed Windows are the non-operable workhorses of Florida impact glazing: large laminated glass panels that don’t open, don’t crank, and don’t slide. They’re built to frame a view and stand up to a hurricane without a shutter behind them. Homeowners in Hialeah choose these for great rooms, stairwells, high transoms, and any wall where light matters more than ventilation. TruePane Windows & Doors has installed these across Hialeah, Miami Lakes, and West Hialeah for years, and we handle every step of the process from wind-zone design pressure to permit paperwork. Call (386) 977-5410 to talk through your wall openings.

Product Overview - Picture & Fixed Windows

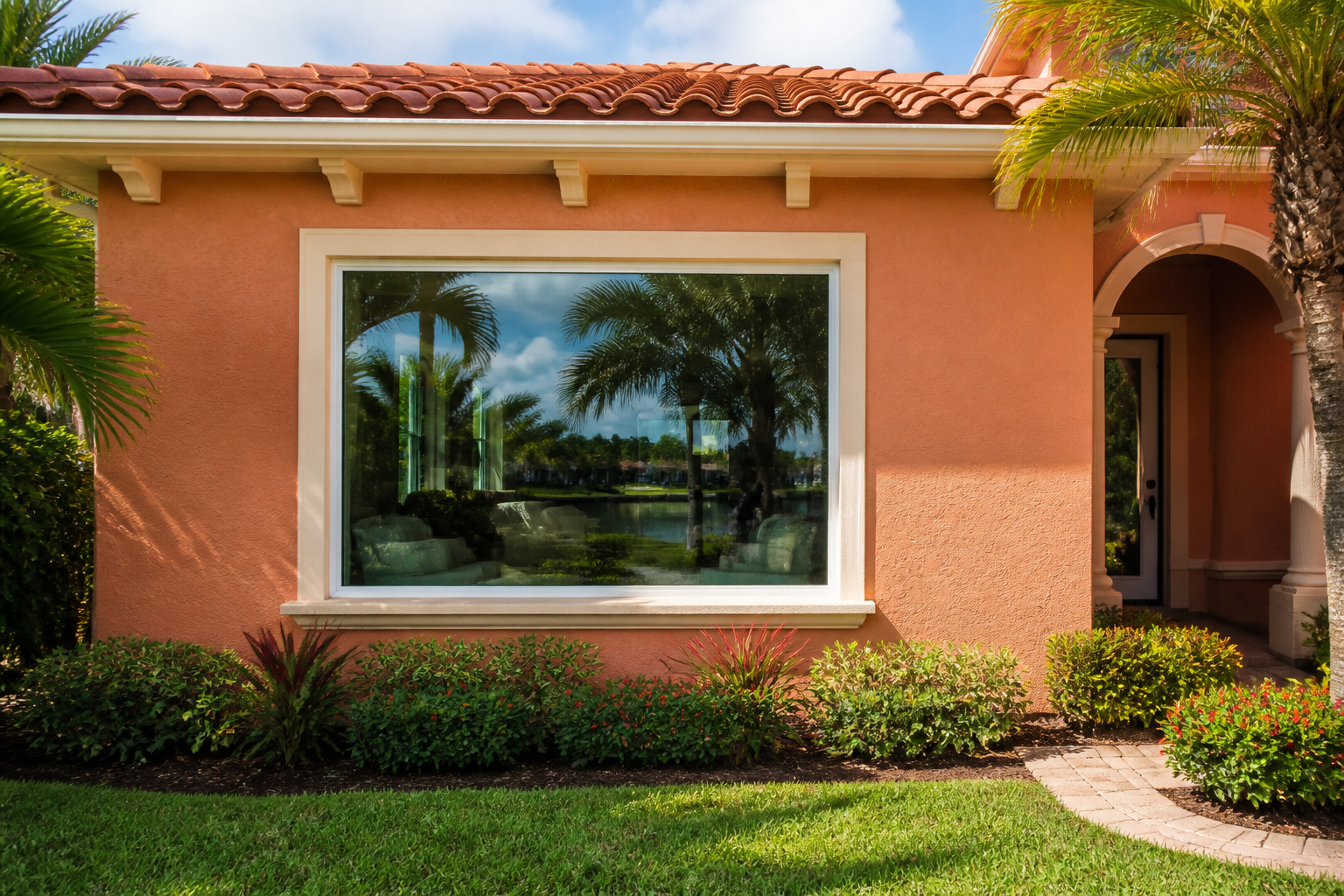

A picture window is a fixed pane of glass set into a frame that never moves. In southern Florida, that simple description covers a lot of engineering. The glass is laminated impact glass with a PVB interlayer, the same construction that holds the pane together when a 2×4 hits it during a storm. The frame is either aluminum or vinyl, anchored to the rough opening, and sealed with a low-expansion foam perimeter so water doesn’t find a path inside.

Architecturally, these windows do two jobs. First, they create the longest possible sightline because there’s no center rail, no operating sash, and no hardware breaking the glass plane. Second, they anchor mixed window walls. A common Hialeah ranch layout pairs a large picture unit in the middle with horizontal roller windows or single-hung units on either side. You get ventilation where you want it and an unobstructed view where you don’t. We order these units up to 120 inches wide, then mull them together on the job site for even wider spans.

Because the glass never cycles open and shut, a fixed frame has fewer moving parts to maintain and fewer points where air or water can infiltrate over time. That’s one reason Hialeah homeowners with east-facing exposure prefer picture windows for the wall that catches the afternoon storms. The panel simply sits there, laminated and pinned, and the seal does the work.

Technical Specifications

Here are the raw numbers and options for the Picture & Fixed Window configurations we install across Hialeah:

• Frame materials: Aluminum or vinyl, depending on the opening size and structural requirements of your wall.
• Maximum panel size: Up to 120 inches wide, with mulling available for wider composite openings.
• Glass options: Laminated impact glass with PVB interlayer, Low-E insulated glass, tinted glass, or clear glass.
• Finish options: White, almond, bronze, black, or tan.
• Design pressure: Matched to your wind zone, up to +/-100. We don’t oversell pressure ratings you don’t need.
• Compliance: Miami-Dade NOA and Florida Product Approval numbers available per configuration, verified on your quote.
• Code path: Engineered to Florida Building Code High-Velocity Hurricane Zone requirements.

The size range means these panels work in everything from a small eyebrow transom over a front door in East Hialeah to a twenty-foot glazed wall on a custom new build. The glass and finish choices are where you dial in performance and appearance.

Hurricane & Compliance Performance

Laminated Impact Glass
Two panes of glass are bonded to a PVB interlayer under heat and pressure. When impact occurs, the glass fractures but the interlayer holds the pieces together and keeps the wind and rain outside where they belong. This is the core of the impact rating, not the frame alone.

Miami-Dade NOA / Florida Product Approval
Each configuration carries a Miami-Dade Notice of Acceptance and a Florida Product Approval number. These are issued per configuration, meaning the specific size, glass, and frame combination gets its own documentation. We verify the numbers on your written quote before you sign anything.

FBC / HVHZ Compliance
The product is engineered to Florida Building Code High-Velocity Hurricane Zone requirements. Hialeah sits inside this wind-borne debris region, so anything we install on an exterior opening has to meet this standard to pass inspection.

TAS 201 / 202 / 203 Testing Context
The HVHZ protocol family includes TAS 201 for large-missile impact, TAS 202 for cyclic wind-pressure loading, and TAS 203 for forced-entry resistance. These tests simulate what a storm actually does to a window: hit it, then flex it, then try to push through it.

Design Pressure for Your Wind Zone
Design pressures are matched to your specific wind zone, up to +/-100. Never higher. Over-specifying a window doesn’t make it stronger, it just makes it heavier and more expensive. We look at your opening’s location, exposure, and elevation, then specify the DP rating that meets code for that opening.

Energy Performance
Low-E insulated glass options are available for west-facing picture windows that bake in the Hialeah afternoon sun. The Low-E coating reflects radiant heat while the insulated air space slows conductive transfer. Tinted glass offers another path for glare control on bright exposures.

Color & Glass Options

Finish colors matter more on picture windows than on any other window type, because there’s so much visible frame relative to the opening. A 120-inch fixed panel surrounded by a thick frame in the wrong color changes how the whole room reads.

White and almond remain the two most common choices for Hialeah’s older ranch homes and Spanish-eclectic bungalows, where the frame should disappear against light stucco or drywall. Bronze and black are increasingly popular on modern builds and on homes with dark roof lines or black window trim as a design statement. Tan sits between the two camps and works well on earth-toned exteriors. All five finishes offered in the Impact Series are baked-on and hold up to UV without fading.

Glass selection gets simpler once you identify the main job of the window. Clear laminated impact glass is the default for maximum light and a neutral view. Low-E insulated glass adds a second pane and a Low-E coating for rooms where the sun hits the opening for hours at a time. Tinted glass cuts brightness and improves privacy during daylight while keeping the view intact from inside. Each layer changes performance and price, so we walk you through the tradeoffs for your specific walls before we order.

Installation by TruePane Windows & Doors in Hialeah

How a picture window is set into the wall decides whether the NOA rating means anything. A perfectly rated laminated panel installed with a sloppy perimeter seal will leak, and the permitting jurisdiction in Hialeah won’t care what the product was rated for if the installation is wrong. This is why installing a picture window is not a side job, especially in a wind-borne debris region.

Our installation starts with a pre-install inspection of the opening. We check the rough opening dimensions, the condition of the surrounding framing, and whether existing flashing or water barriers need repair. Then we pull the old window, address any rot or termite damage we find, and set the new panel. Every unit gets set level, plumb, and square, with shims where needed, not where convenient.

The perimeter is air-sealed with AAMA 812 low-expansion foam. This product expands just enough to fill the gap without distorting the frame, which is critical on large fixed units where a warped frame will crack the reveal and compromise the seal. The installation follows AAMA 2400/2410 practice for window installation. After the interior and exterior trim go back on, we run a water test on the exterior and walk the inside with the homeowner to show them the seal.

For Hialeah specifically, we account for coastal exposure factors on the east side of town and the wind speeds that climb as you move into open areas. We also confirm permit path expectations with the local building department before we start, so the NOA paperwork is ready for submittal with your permit application.

Frequently Asked Questions - Picture & Fixed Windows

What wind zone or design pressure is the Picture & Fixed Window rated for?

Design pressure is matched to your specific wind zone, up to +/-100. The exact rating for your opening depends on the glass package, frame material, and panel size you choose. We specify the DP you need for code compliance, not a higher number. Call (386) 977-5410 and we’ll calculate the rating for your wall.

What is the lead time on Picture & Fixed Windows in Hialeah?

Most picture window configurations arrive within a few weeks of order, but large custom units or unusual glass packages can push the timeline further. We give you a written lead time when we quote the project, and we don’t start the job until the windows are in our hands. Call for a current estimate.

Does my permit application need a Miami-Dade NOA or Florida Product Approval submittal?

Yes. Hialeah sits in the HVHZ, so your permit application will need the NOA and Florida Product Approval documentation for the specific configurations you’re installing. We provide the documents for your submittal with your quote, so there’s no scrambling at the permit counter. Call us before you pull your permit.

Can I size or configure a picture window exactly to my wall opening?

In most cases, yes. These are manufactured per opening, not picked off a shelf. Panel sizes run up to 120 inches wide, and multiple panels can be mulled together for longer spans. Glass and finish selections are all chosen at the time of order. Call to discuss your exact measurements.

How do I maintain the frame of a fixed window?

The frame needs a rinse with mild soap and water a few times a year, especially if you’re near salt air on the east side of Hialeah. Check the perimeter seal annually for cracking or gaps so water never sits against the frame. The glass itself cleans like any other glass, with a non-abrasive cleaner and soft cloth.

Get a Quote - Picture & Fixed Windows in Hialeah

Ready to see what a fixed impact window costs for your wall? We provide free on-site measurements and written, line-item quotes with no change orders. We’ll pull the designs, confirm the design pressure for your wind zone, and walk you through glass and finish options. Call (386) 977-5410 to schedule your measurement. We install PGT, CGI, CWS, ES Windows, ECO, and Mr-Glass lines, and we’ll help you pick the right configuration for your Hialeah home.

Written by the team at TruePane Windows & Doors, serving Hialeah since 2012.
