AfterVLX 100 Pivot Door in Hialeah, FL | TruePane Windows & Doors

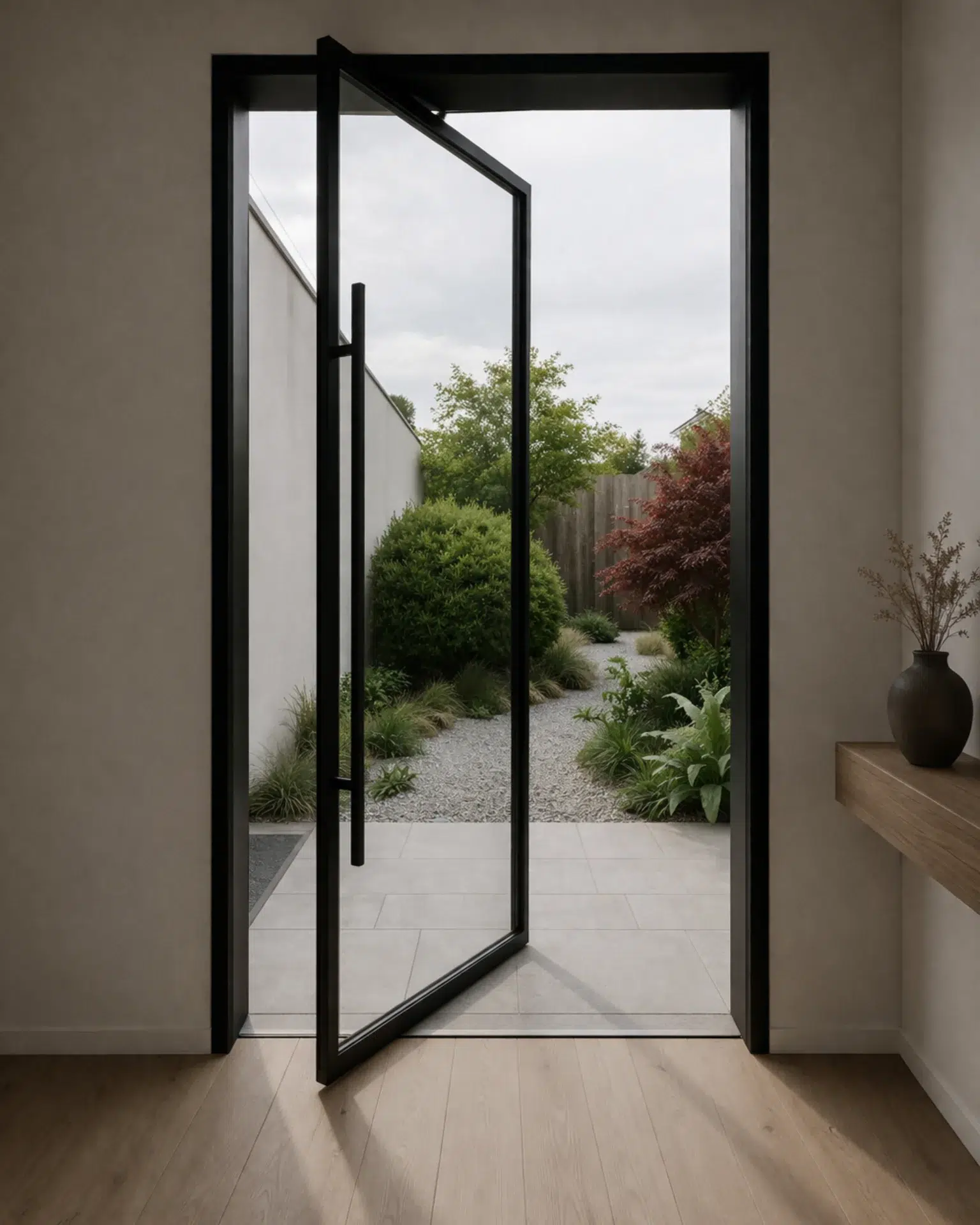

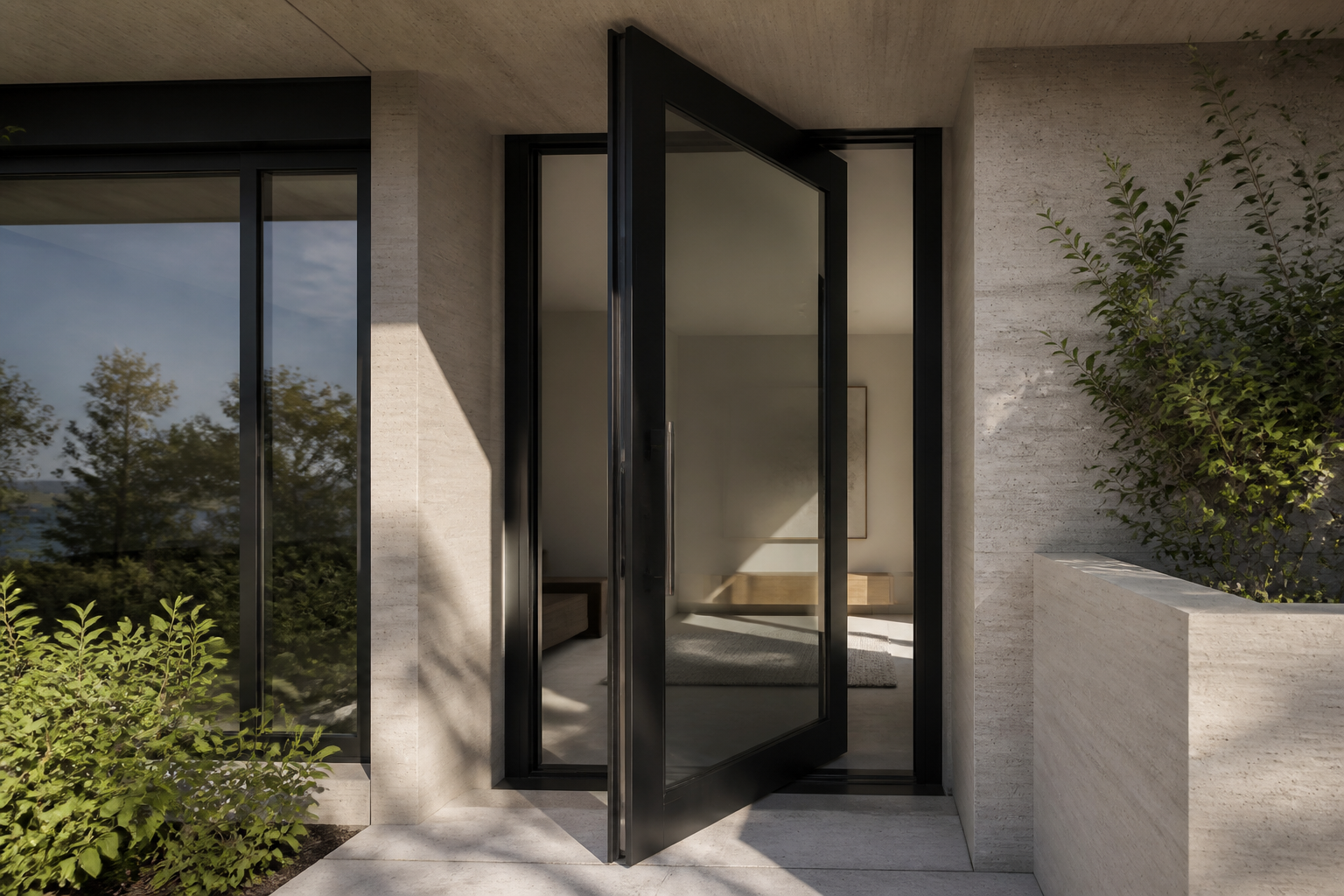

The VLX 100 Pivot Door is a heavy-duty aluminum entry door that rotates on a vertical center axis instead of swinging on side hinges. That pivot mechanism lets the door carry oversized glass panels up to 60 inches wide and 120 inches tall, which turns an entryway into an architectural focal point. Homeowners in Hialeah choose this door when they want something beyond a standard front door: more glass, cleaner lines, and a genuine statement piece. TruePane Windows & Doors is an authorized installation partner for ViewLux, the manufacturer behind the VLX 100, so you get factory-backed product knowledge and installation that protects your warranty. Call (386) 977-5410 to discuss your project.
Product Overview - VLX 100 Pivot Door
The VLX 100 is built for homeowners who want an entryway that feels open but still performs. Pivot doors carry weight differently than hinged doors. The load transfers through the floor and header, not through side jambs, which means the door can be wider and heavier without sagging over time. That is why the VLX 100 can hold a glass panel up to five feet wide and ten feet tall while still operating smoothly on its pivot points.
The frame is extruded aluminum with a wall thickness of 0.098 inches and a profile width of 2.56 inches. That is a substantial frame by any standard. In Hialeah, where summer humidity and salt air near the coast punish thin frames and cheap hardware, the material choice matters. Aluminum will not warp, swell, or rot the way wood does, and the thermal break inside the profile keeps heat transfer under control.
This is not a budget door, and it is not trying to be. The VLX 100 is for a specific buyer: someone building a modern home in Hialeah, renovating a mid-century property, or replacing an entry on a custom residence who wants the door to be the first thing people remember. We install these doors in neighborhoods across Hialeah, and the reaction when the pivot swings open is consistently the same: people stop and look.
Technical Specifications
Here is what the VLX 100 brings on paper. Every number below reflects the standard configuration TruePane Windows & Doors orders for Hialeah projects.
- Frame material: Extruded aluminum, 0.098″ wall thickness
- Profile width: 2.56 inches
- Maximum dimensions: Up to 60 inches wide × 120 inches tall
- Glass types: Clear, Frosted, Obscure, Low-E, Tempered, Laminated
- Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood
- Operation: Vertical center-axis pivot
- Thermal performance: NFRC-rated thermal break technology
- Installation standard: AAMA 2400/2410 compliant
- Sealant: AAMA 812 low-expansion foam on all perimeter joints
- Impact option: Laminated impact-resistant glass available
Performance Features
Thermal Efficiency - The VLX 100 frame carries a thermal break that separates the interior and exterior aluminum faces. That break interrupts conductive heat transfer, which is exactly what you want during a Hialeah summer. With Low-E glass added, the door keeps air-conditioned air inside and afternoon sun outside. The NFRC rating gives you real numbers to compare against other doors.
Acoustic Performance - Hialeah is a lively city. Traffic on 49th Street, planes overhead, neighbors, the general hum of a dense urban area. Laminated glass is the single best upgrade for sound control on this door, cutting mid-frequency noise noticeably versus standard clear glass. The foam perimeter seal also helps by eliminating the small air gaps that let noise leak through around the frame.
Airtightness & Weather Seal - Every VLX 100 we install in Hialeah gets AAMA 812 low-expansion foam on all perimeter joints. This is not optional. The foam seals the gap between the aluminum frame and the rough opening, stopping both air infiltration and water intrusion. A door that breathes around its edges costs you money every month on the electric bill.
Waterproofing - South Florida rain is serious. The VLX 100 uses a multi-layer water management system: exterior gaskets, an internal drainage track, and the perimeter foam seal. Water that gets past the first layer drains out through the sill rather than pooling inside the frame. We also run a water test after every Hialeah installation to confirm the seal before we call the job done.
Wind Resistance - The VLX 100 is rated for the wind loads typical of Miami-Dade and Broward construction standards, which Hialeah falls under. The thick 0.098-inch aluminum wall and the pivot anchoring system work together to hold the door stable in storm conditions. Pair it with laminated impact glass and you have a door ready for hurricane season, not just a pretty entry.
Security & Hardware - A pivot door is only as strong as its hardware. The VLX 100 uses a reinforced pivot system top and bottom, plus a multipoint lock that engages along the frame. Laminated glass adds another layer of security by holding together under impact instead of shattering. For Hialeah homeowners, that combination of a thick aluminum profile and laminated glass is meaningful protection.
Color & Glass Options
The VLX 100 comes in six standard finishes. Premium Black is the most popular in Hialeah right now, especially on modern and contemporary homes where dark frames against white stucco creates a strong contrast. Pure White works on tropical and coastal styles that lean lighter and airier. Anodized Silver is a classic that reads industrial and pairs well with exposed concrete and steel. Bronze and Champagne are warmer metallic tones that suit mid-century Florida architecture beautifully. Teak Wood is a wood-grain finish that gives you the look of timber without the maintenance headache in Hialeah’s humidity.
On the glass side, Clear maximizes light and views. Low-E is what we recommend for south-facing entries, since it blocks the solar heat that hits Hialeah doors hardest. Frosted and Obscure give you privacy while still letting light through, which works well for entries close to the street. Tempered is standard for safety. Laminated is the upgrade for impact resistance and sound reduction. You can combine Low-E with laminated when you want energy performance and storm protection in one panel.
Installation by TruePane Windows & Doors in Hialeah
Installation is where the VLX 100 either becomes a 20-year door or a warranty problem. Pivot doors are unforgiving. If the rough opening is out of square by even a small margin, the door binds or the gaps look wrong. We set every pivot door level, plumb, and square, and we check those measurements twice before securing anything.
Our process in Hialeah starts with a pre-installation inspection. We measure the opening, check the floor for level, and confirm the header can carry the door weight. Then we set the pivot hardware and hang the door, adjusting until the reveal lines are even on all sides. The perimeter gets AAMA 812 low-expansion foam at every joint, which seals against air, water, and noise. We install per AAMA 2400/2410, the recognized standard for window and door installation. After the door is in place, we run a water test on the exterior, check the lock engagement, and walk you through operation and maintenance.
Hialeah brings its own considerations. The humidity can warp subfloor materials over time, so we check the threshold area carefully. Salt air from the coast accelerates corrosion on cheap hardware, which is another reason we only install the factory-specified pivot components. If the house is older, we may find framing that needs reinforcement before the door goes in. We handle that during the pre-install visit so there are no surprises on installation day.
One thing to know: manufacturer warranties on pivot doors are conditional on professional installation. A DIY install or a handyman job voids coverage. TruePane Windows & Doors is an authorized ViewLux installation partner, which means your warranty stays intact and any future warranty claim goes through a partner the manufacturer recognizes.
Frequently Asked Questions - VLX 100 Pivot Door
The VLX 100 is built to order, and lead time typically runs 6 to 10 weeks from the date we finalize your measurements and specifications in Hialeah. Custom sizes, laminated glass, and specialty finishes can extend that window. We recommend budgeting at least 8 weeks from order to installation. Call (386) 977-5410 and we will give you a current lead time for your exact configuration.
The VLX 100 can qualify for energy-related incentives when configured with Low-E glass, since the door’s NFRC-rated performance meets the efficiency thresholds for exterior door tax credits. Eligibility depends on the specific glass package and your total project scope. We can walk you through what qualifies on your Hialeah home during the free estimate, so call (386) 977-5410 to start.
The VLX 100 carries a manufacturer warranty through ViewLux that covers the aluminum frame, glass, and hardware. The warranty is contingent on installation by an authorized partner, which is what TruePane Windows & Doors provides in Hialeah. We also stand behind our installation workmanship separately. Specific warranty terms depend on finish and glass selection, and we will provide the full documentation with your quote.
Yes. The VLX 100 is built to your opening within the maximum span of 60 inches wide and 120 inches tall. That gives you room to go bigger than any standard hinged door. During our Hialeah measurement visit, we will confirm what your rough opening can support and what size gives you the cleanest reveal lines. Call (386) 977-5410 to schedule a free on-site measurement.
Aluminum frames need very little: a rinse with mild soap and water a few times a year, and a check of the pivot points and weather gaskets twice a year. Avoid abrasive cleaners that can scratch the finish. In Hialeah’s coastal air, we recommend rinsing the frame monthly during the dry season to wash off salt residue before it builds up. The hardware pivot points should be lubricated annually with a silicone-based product.
Get a Quote - VLX 100 Pivot Door in Hialeah
The VLX 100 Pivot Door is a door you plan around, not one you buy off the shelf. If you are building or renovating in Hialeah and want to see what this door looks like on your entryway, call TruePane Windows & Doors at (386) 977-5410. We will schedule a free on-site measurement, walk through glass and finish options for your specific Hialeah home, and give you a written line-item quote with no surprises.
Written by the team at TruePane Windows & Doors, serving Hialeah, FL.
